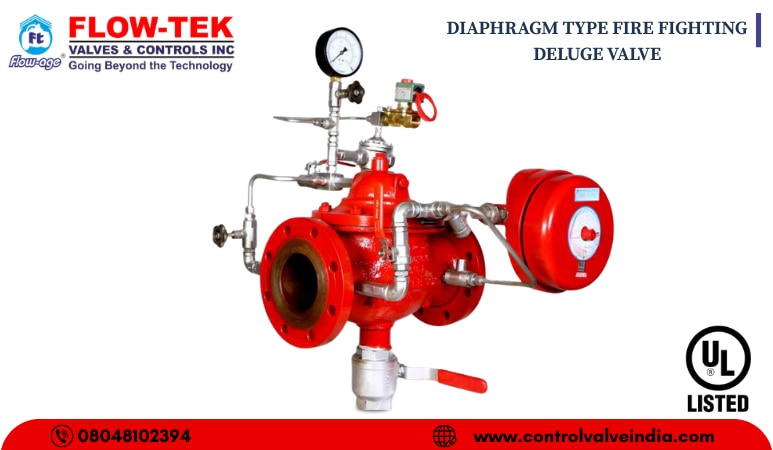

DIAPHRAGM TYPE FIRE FIGHTING DELUGE VALVE

Diaphgram Type Fire Fighting Deluge Valve Manufacturer in India.

In high-risk industrial settings, rapid fire suppression is critical 'Flow-Tek Valves & Controls Inc’s Diaphragm Type Fire Fighting Deluge Valve is designed for rapid water or foam release, delivering full-area fire protection with unmatched efficiency.'. Designed for total protection in environments where conventional sprinkler systems are insufficient, this valve guarantees both speed and reliability, making it indispensable for high-hazard industries. As a leading Deluge Valves Manufacture Supplier in India, Flow-Tek ensures superior quality and compliance with global standards.

Technical Specifications

• Valve Type: Quick-acting diaphragm-type deluge valve

• Material: High-grade stainless steel or carbon steel

• Flow Capacity: Adjustable based on system requirements

• Activation Methods: Electric solenoid, pneumatic dry pilot, or wet pilot line

• Temperature Range: Operates reliably in extreme environments with optional insulation

• Compliance: Designed per NFPA and UL standards

• Mounting: Cabinet or skid-mounted for easy installation and maintenance

How It Works – Differential Pressure for Instant Response

The diaphragm-type deluge valve operates on a differential pressure principle. Unlike standard sprinkler systems where individual heads activate, a deluge system keeps all sprinkler heads open at all times.

• Standby Mode: The valve remains closed, as the diaphragm/clapper is held shut by water pressure in the prime chamber.

• Detection: An independent fire detection system—such as heat, smoke, or pilot line sensors—triggers the valve.

• Activation: Releasing the prime chamber pressure allows the clapper to lift.

• Full Flow Discharge: Water or foam is instantly released to all open sprinkler heads, providing complete area coverage and rapid fire suppression.

Key Components

• Valve Body: Robust housing that controls water or foam flow.

• Clapper/Diaphragm: Flexible barrier separating the prime chamber from system supply, maintaining closure under pressure.

• Prime Chamber (Control Chamber): Holds pressure to keep the valve closed until detection occurs.

• Trim Assembly: Includes auxiliary valves, gauges, and piping for testing, draining, and system control.

• External Detection System: Activates via pilot line sensors, electric heat detectors, or smoke/UV/IR detectors.

Applications – Industries Where Speed Matters

Diaphragm-type deluge valves are essential in industries where rapid, total-area fire suppression is critical:

• Aircraft Hangars: Protects aircraft and fuel storage from fast-spreading fires

• Power Generation Facilities: Ensures safety of transformers, generators, and turbines

• Chemical Processing Plants: Secures areas with flammable liquids, solvents, and reactive chemicals

• Oil & Gas Facilities: Refineries, offshore platforms, and storage depots with high fire hazards

• Industrial Processing Units: Conveyor systems, equipment pits, and high-dust environments

• Transformer Protection Areas: Rapid response to electrical and fire hazards in utility sectors
