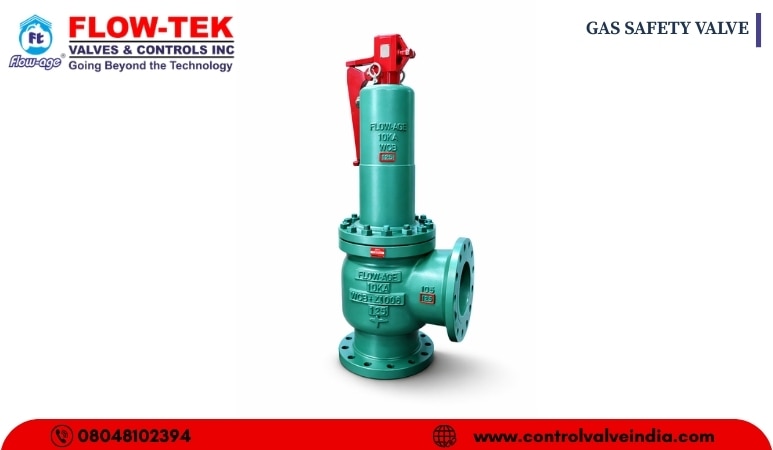

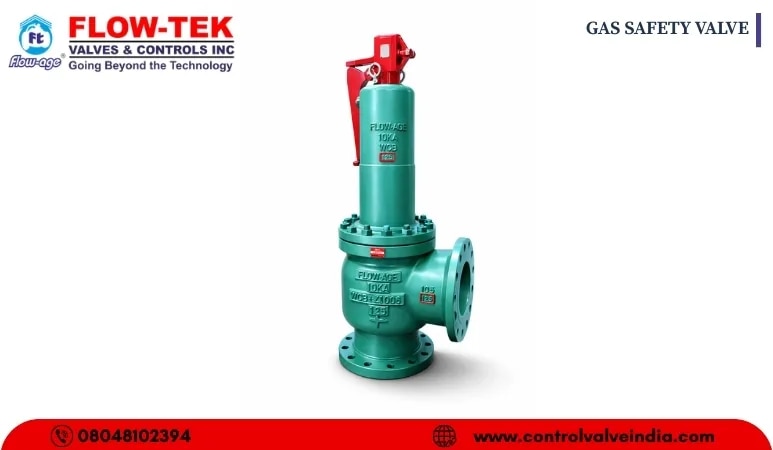

GAS SAFETY VALVE

Gas Safety Valve Manufacturer in India.

Flow-Tek FT 520 series spring-loaded pressure relief valve has been engineered to provide high-quality cover pressure protection for Air, gas, vapors, liquids, and two-phase applications, in an exceptionally rugged, standardized design for the process and power industries.

All valve castings and forgings are manufactured to ASME/ASTM material specifications. These are available in WCB/WC6/WCC/WC9/CF8/CF8M/CA15/Hastalloy-C/NACE MR0175 etc.,

High-pressure valves will have an Inconel Disc. And SS347H-Nozzle. Standard valves have SS316 Nozzle and Disc.

Technical Specification :

Valve size: 1"xGx2" to 10"xVx14" ( SMALLER SIZES AVAILABLE AS PER REQUIRMENT)*

Orifice size 20.0mm to 192mm

Orifice area : 0.44in² to 44.85in² (2.85cm² to 289.38cm²)

Inlet rating: A NSI class 150,300,600 & 900

Temp. range : upto +538°c

Pressure range: SK FOR charts

APPLICABLE STANDARD:

Design Standard : API-520 , API-521, API-526, API-527, ASME SEC-VIII

End Connection: Flanged End to suit ANSI / DIN / BS / JIS / IS, etc.

Testing Standard: PI 527
