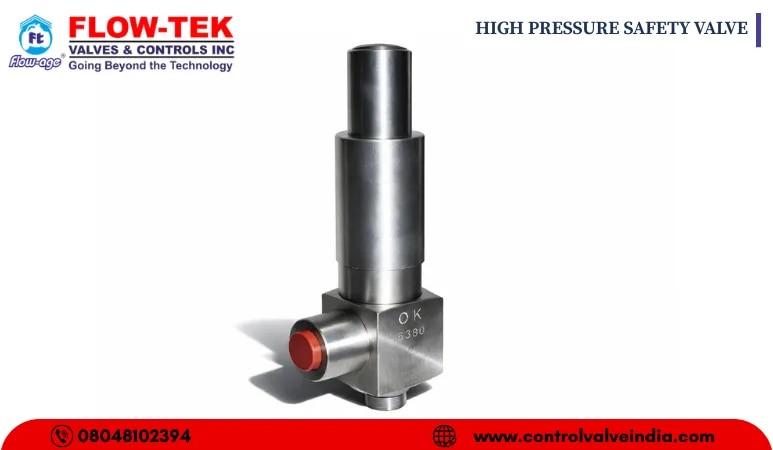

HIGH PRESSURE SAFETY VALVE

High-Pressure Safety Valve Manufacturer in India.

Model FT-600 Close Bonnet Type Safety Relief Valves are designed for high-pressure service. These valves are suitable for saturated and superheated steam; Non-poisonous and non-inflammable gases and Vapours. The Model FT-600 is a Closed Bonnet type Valve specifically designed for poisonous and Inflammable gases, vapours, and liquids. These valves are available in 12 sizes per API-526 Orifice sizes (EA-RA) and ANSI flange,s covering set pressures from 1.2 bar to 204 bar. A variety of materials is available to withstand temperatures up to 550°C.

Technical Specification :

Valve size : 1/2"x3/4" to 2"x2" ( SMALLER SIZES AVAILABLE AS PER REQUIRMENT)*

Orifice size: 5.0 mm to 19.0mm

Orifice area: 0.03 in2 to 0.439 in2

Inlet rating ANSI class 150,300,600 & 900

Temp. range : upto +5380c

Pressure range :ASK FOR charts

APPLICABLE STANDARD:

Design Standard : API-520 , API-521, API-526, API-527, ASME SEC-VIII

End Connection Flanged End to suit ANSI / DIN / BS / JIS / IS e.

Testing Standard :API 527
