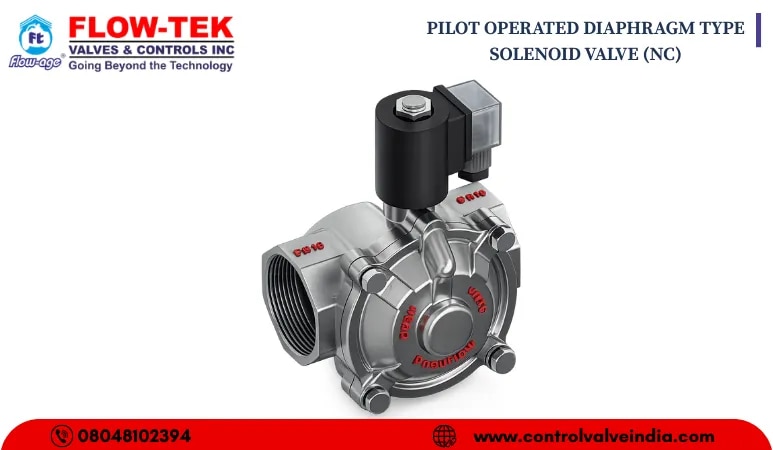

PILOT OPERATED DIAPHRAGM TYPE SOLENOID VALVE (NC)

Pilot-Operated Diaphragm-Type Solenoid Valve (NC) in India.

Reliable fluid control is essential for maintaining efficiency and safety in industrial automation systems. Whether for water treatment, chemical processing, textile machinery, or oil and gas applications, the right solenoid valve ensures smooth operation and accurate flow control.

Flow-Tek Valves & Controls Inc. offers the Pilot Operated Diaphragm Type Solenoid Valve (NC), engineered for dependable on/off flow control in industrial pipelines. Designed with a diaphragm-assisted operating mechanism, this valve uses line pressure to control larger fluid volumes while requiring relatively low electrical power to operate the solenoid.

Our FT-POD-SOV series is designed for industrial applications that require consistent switching, durable construction, and reliable sealing.

As a trusted Pilot Operated Diaphragm Type Solenoid Valve (NC) Manufacturer in Ahmedabad, Flow-Tek provides practical valve solutions for different industrial operating requirements.

What Is a Pilot Operated Diaphragm Type Solenoid Valve?

A pilot-operated diaphragm solenoid valve is an electromechanical valve that uses electromagnetic force and line pressure to regulate fluid flow.

In a Normally Closed (NC) configuration, the valve remains closed when the electrical coil is de-energized. When power is supplied, the solenoid plunger opens a small pilot passage, releasing pressure from the upper diaphragm chamber. The resulting pressure difference lifts the main diaphragm and allows the medium to flow.

This operating principle makes the valve suitable for applications requiring efficient control of larger flow volumes.

Unlike zero-pressure-operated valves, pilot-operated models require a minimum pressure differential to function correctly.

Technical Specifications of FT-POD-SOV

• Model Number: FT-POD-SOV

• Product Type: Pilot-Operated Diaphragm Type Solenoid Valve

• Valve Function: 2/2 Way

• Valve Position: Normally Closed (NC) / Normally Open (NO)

• Operating Principle: Pilot-Operated Diaphragm

• Minimum Pressure Differential: 0.5 Bar

• Body Material: SS304 / SS316

• Diaphragm Material: Nitrile / EPDM / Viton

• End Connection: Screwed End / Flanged End

• Manual Override: Available on request

• Compatible Media: Air, Water, Oil, Diesel, Kerosene, LPG, and compatible chemicals

• Maximum Temperature – Nitrile: 90°C

• Maximum Temperature – EPDM: 120–130°C

• Maximum Temperature – Viton: 180°C

Key Features and Benefits of FT-POD-SOV

Flow-Tek's FT-POD-SOV series delivers dependable performance in industrial automation systems.

• Pilot-Operated Mechanism: Uses line pressure to assist main valve opening.

• Normally Closed Operation: Remains closed when the coil is de-energized.

• Low Power Consumption: Requires relatively low electrical power for switching.

• Durable Construction: Available in SS304 and SS316 body materials.

• Flexible Diaphragm Options: Nitrile, EPDM, and Viton options for different media and temperature requirements.

• Multiple Connections: Available with screwed-end and flanged-end connections.

• Automation Compatibility: Suitable for automated machinery and industrial control systems.

• Manual Override: Available on request for specific configurations.

Industrial Applications of Pilot Operated Solenoid Valves

The FT-POD-SOV series suits several industries that require automated on/off flow control.

1. Chemical Industries: Controls compatible chemicals in industrial processing equipment.

2. Textile Processing: Regulates water and other process media in textile machinery.

3. Oil & Gas: Suitable for petrol, diesel, kerosene, and compatible fuel applications.

4. Water Treatment Plants: Used in membrane flushing and water distribution systems.

5. Building Management Systems: Supports automatic overhead tank filling and chilled-water supply control.

6. Combustion Equipment: Controls compatible LPG supply in vaporizer systems.

7. Air Dryers: Provide automated compressed-air switching.

8. Laundry and Cleaning Equipment: Controls water and other compatible media.

9. Pharmaceutical Machinery: Used in bottle and vial washing equipment.

10. Automatic Car Wash Systems: Supports automated vehicle washing operations.

11. Injection Molding Machines: Controls cooling water supply.

12. Irrigation Systems: Provides automated water flow control where sufficient line pressure is available.

Your Trusted Pilot Operated Solenoid Valve Supplier in Gujarat

Choosing the right solenoid valve involves evaluating operating pressure, media compatibility, diaphragm material, and electrical requirements.

Flow-Tek Valves & Controls Inc supports industrial buyers searching for a dependable Pilot Operated Diaphragm Type Solenoid Valve (NC) Supplier in Gujarat.

Whether you are looking for a Pilot Operated Diaphragm Type Solenoid Valve (NC) Distributor in India, a Top 5 Pilot Operated Diaphragm Type Solenoid Valve (NC) Exporter from India, or a Pilot Operated Diaphragm Type Solenoid Valve (NC) Trader in Saudi Arabia, selecting a suitable manufacturer is important for long-term operational reliability.

Flow-Tek also caters to buyers searching for a Pilot Operated Diaphragm Type Solenoid Valve (NC) Wholesaler in Israel and comparing the Top 5 Pilot Operated Diaphragm Type Solenoid Valve (NC) Manufacturers in India.

Why Choose Flow-Tek Valves & Controls Inc?

Flow-Tek delivers industrial solenoid valve solutions that combine reliable operation, durable materials, and application flexibility.

The FT-POD-SOV series offers multiple diaphragm materials, stainless steel body options, and different connection arrangements to accommodate various industrial requirements.

Contact Flow-Tek Valves & Controls Inc. today for technical specifications, product availability, and pricing.

Frequently Asked Questions (FAQs)

1. What is a Pilot Operated Diaphragm Type Solenoid Valve?

It is an electromagnetic valve that uses a small pilot opening and line pressure to operate a larger diaphragm, controlling liquid and gas flow.

2. What is the model number of Flow-Tek's pilot-operated solenoid valve?

The model number is FT-POD-SOV, designed for industrial on/off flow control applications.

3. What is the minimum operating pressure required?

The FT-POD-SOV requires a minimum pressure differential of 0.5 bar. It is not suitable for gravity-fed or zero-pressure applications.

4. Which diaphragm materials are available?

The valve is available with Nitrile, EPDM, and Viton diaphragm options. Selection depends on the operating temperature and compatibility with the process medium.

5. Can this valve be used for steam applications?

No. The FT-POD-SOV series is not suitable for steam service. Flow-Tek recommends selecting the appropriate HCP or MCP series valve for steam applications.
