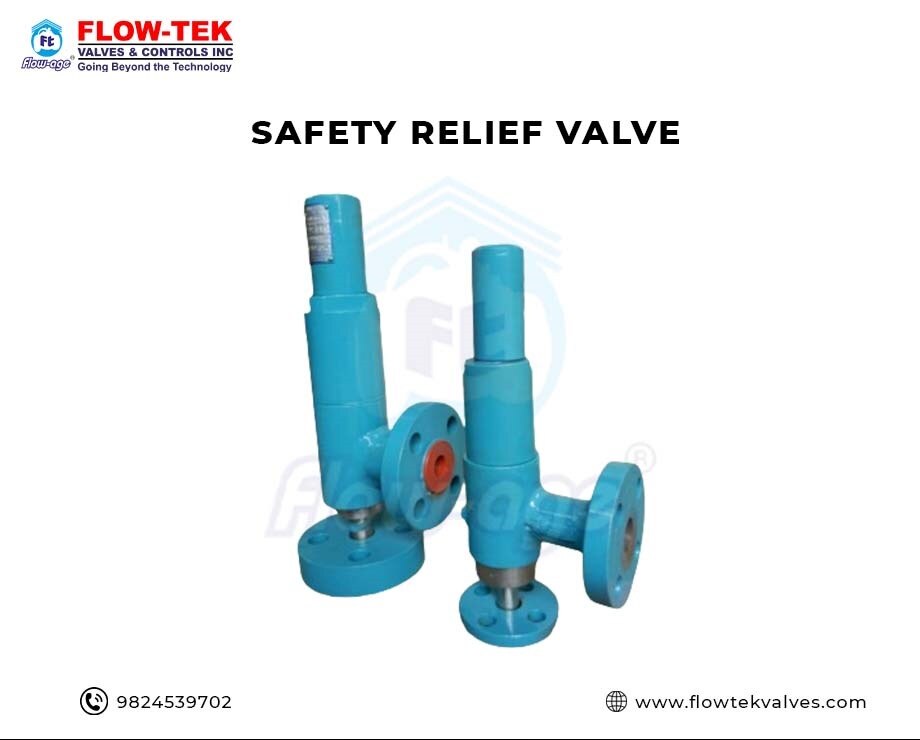

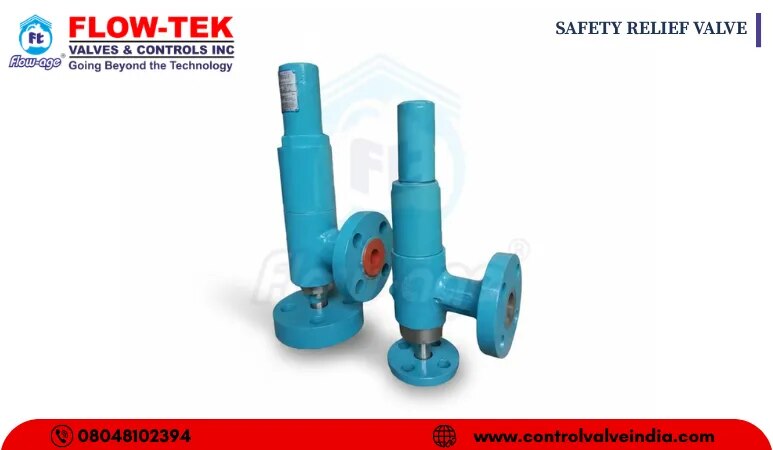

SAFETY RELIEF VALVE

Safety Relief Valve Manufacturer in India.

Flow-Tek Series FT-100 Screwed End and FT-110 Flanged End are used in Pharmaceutical Industries, Food and Beverages, Nuclear Chemical Reactors, Vessels, and Pipeline applications.

A specific application is also found on high-pressure triplex plunger pumps, where this is used to protect against overpressure on such types of pumps and pipelines. This is also widely used in air eliminators at loading terminals for petroleum products.

APPLICABLE STANDARD:

Sizes: 15 x 25NB, 20 x 25NB & 25 x 40NB 40x50NB & 50x50NB

RATING: SUITABLE FOR WORKING PRESSURE UPTO 200 BAR

MATERIAL: FORGED STEEL AND INVESTMENT CAST STAINLESS STEEL

END CONNECTION: SCREWED AND SOCKET WELD

ORIFICE: 7.0 MM, 10 MM, 12 MM,16 MM, 19 MM

SET PRESSURE: Pressure range - 1.5Bar to 250Bar
